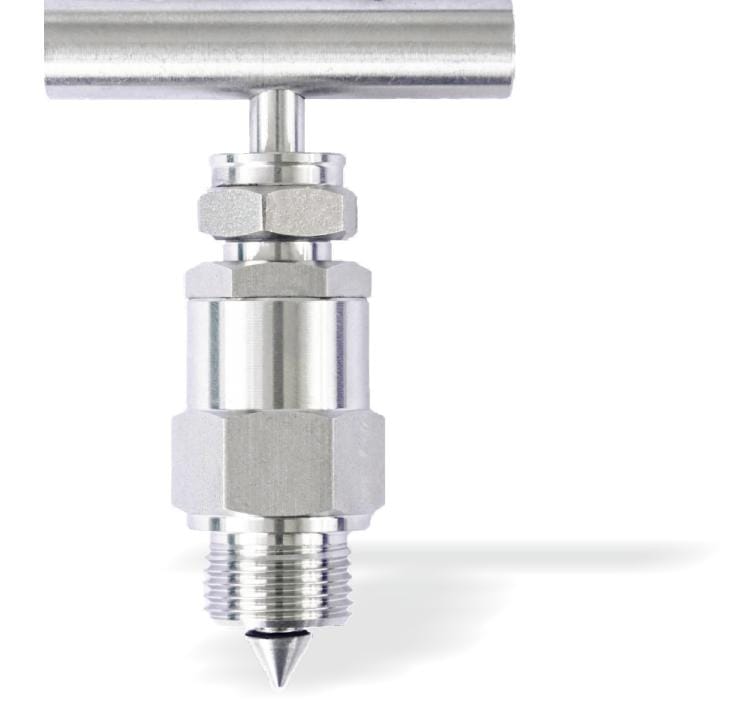

Neddle Valve
Needle valve is a kind of fine-tuning valve. Its valve plug is needle shaped and is mainly used to adjust throttle flow. The fine-tuning valve requires the opening of the valve port to become larger gradually, and can be adjusted continuously and finely from closing to opening.
How Needle Valves Work?
Water faucets are the best example to show how globe valves work. Turning on the faucet means raising or lowering the stem, depending on the design. Water then comes out of the faucet. When turned to the other direction, say, turned off, the raised gate is lowered or the lowered gate is raised.
Neddle Valve

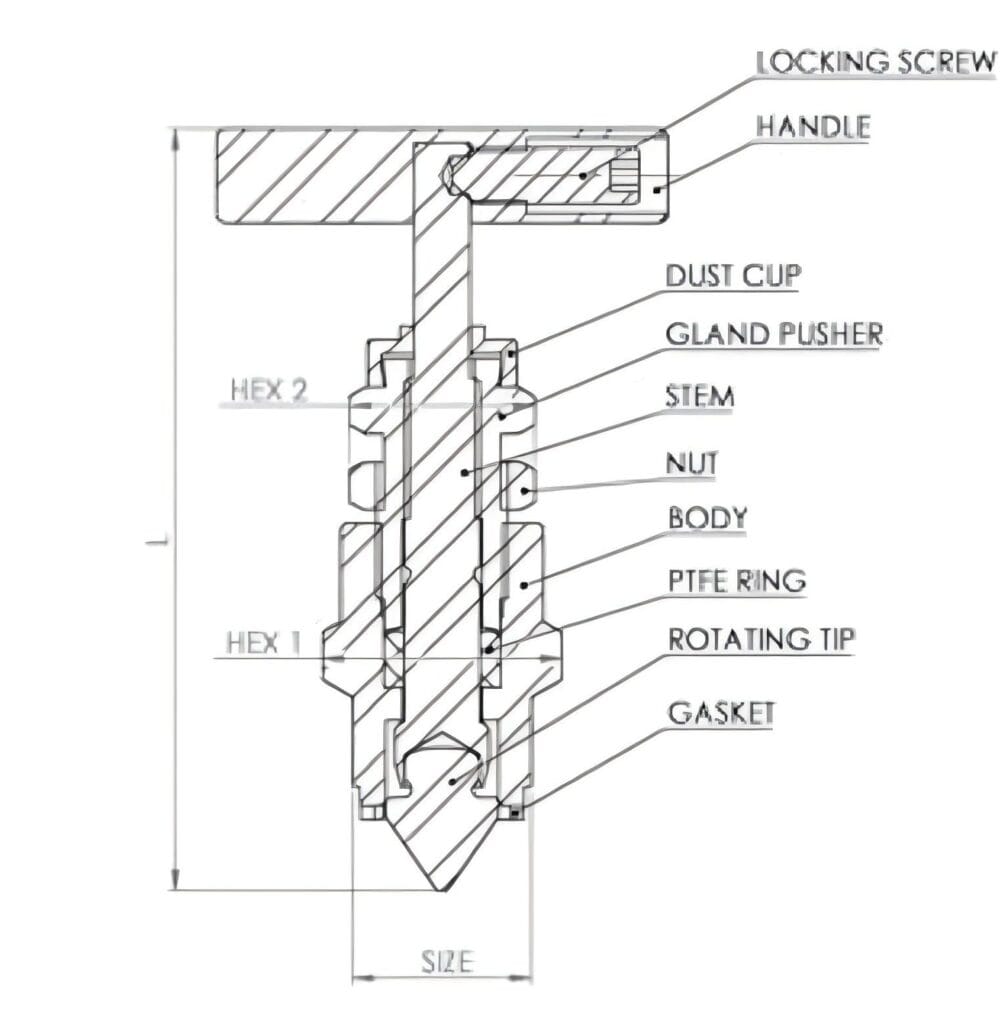

STRUCTURAL FEATURES
Working pressure up to: 10000psig(690bar)
Working temperature: -65°F to 1200°F (-54°C to 649°C)
Upper stem thread lubricant isolated from system media
Technical Data
End connections | 1/4 to 1/2 thread 1/16″ to 3/4″ and 3 mm to 18 mm tube fitting |
Working pressure | up to: 10,000 psig (690 bar) |
Working temperature | 0°F to 450°F (-18°C to 232°C) |
Orifice Size | 0.16″ (4 mm) to 0.71″ (18 mm) |
Flow Pattern | Straight Angle |
Available material | Carbon steel CF8 CF8M 304 Stainless Steel 304L Stainless Steel 316 Stainless Steel 316L Stainless Steel Alloy 400 Alloy 625 Alloy C-276 Brass |
